3D modelling of the built environment

Course Content

The main topics described in the course are:

• voxel models and voxelisation;
• constructive solid models (CSG) and Nef polyhedra;
• (constrained) tetrahedralisation;
• the industry foundation classes (IFC);
• CityGML and CityJSON; and
• applications of 3D models (eg calculation of volumes and solar potential).

Checkout my lab repository

Simple polyhedron processing

For this assignment I implemented a method to simplify a 3D city model by merging neighbouring buildings into blocks. This method involved the following steps:

1. read the triangles in the input 3D city model from an OBJ file and load it into a data structure;
2. for each triangle, compute its (expanded) bounding box;
3. use the bounding boxes to find pairs of neighbouring triangles;
4. assign groups of neighbouring triangles to blocks;
5. in each block, store all the points of its triangles’ vertices;
6. for each block’s points, compute its convex hull and its min/max z values;
7. using each block’s convex hull and min/max, create triangles for its output roof, floor and wall geometries;
8. output the triangles to an OBJ file.

Read the report?

Enriching the 3DBAG with new attributes

In its current form, the 3DBAG dataset contains for each of the 10M+ buildings in the Netherlands:

1. the 3D geometry at three LoDs: 1.2+1.3+2.2
2. several attributes, eg the construction year, the height of the ground, the type of roof, current status of the building, etc.

For this assignment, we are asked to calculate a few useful attributes (those can be useful for others when processing the 3DBAG files) and to add them to the file. The attributes are namely:

• volume
• orientation
• area+orientation of the "RoofSurface" surfaces
• geometric difference between the LoD1.3 and LoD2.2 (with Hausdorff distance)

The updated model must be delivered in the CityJSON format.

Read the report?

BIM to Geo conversion using Boolean set operations on Nef polyhedra

Read the report?

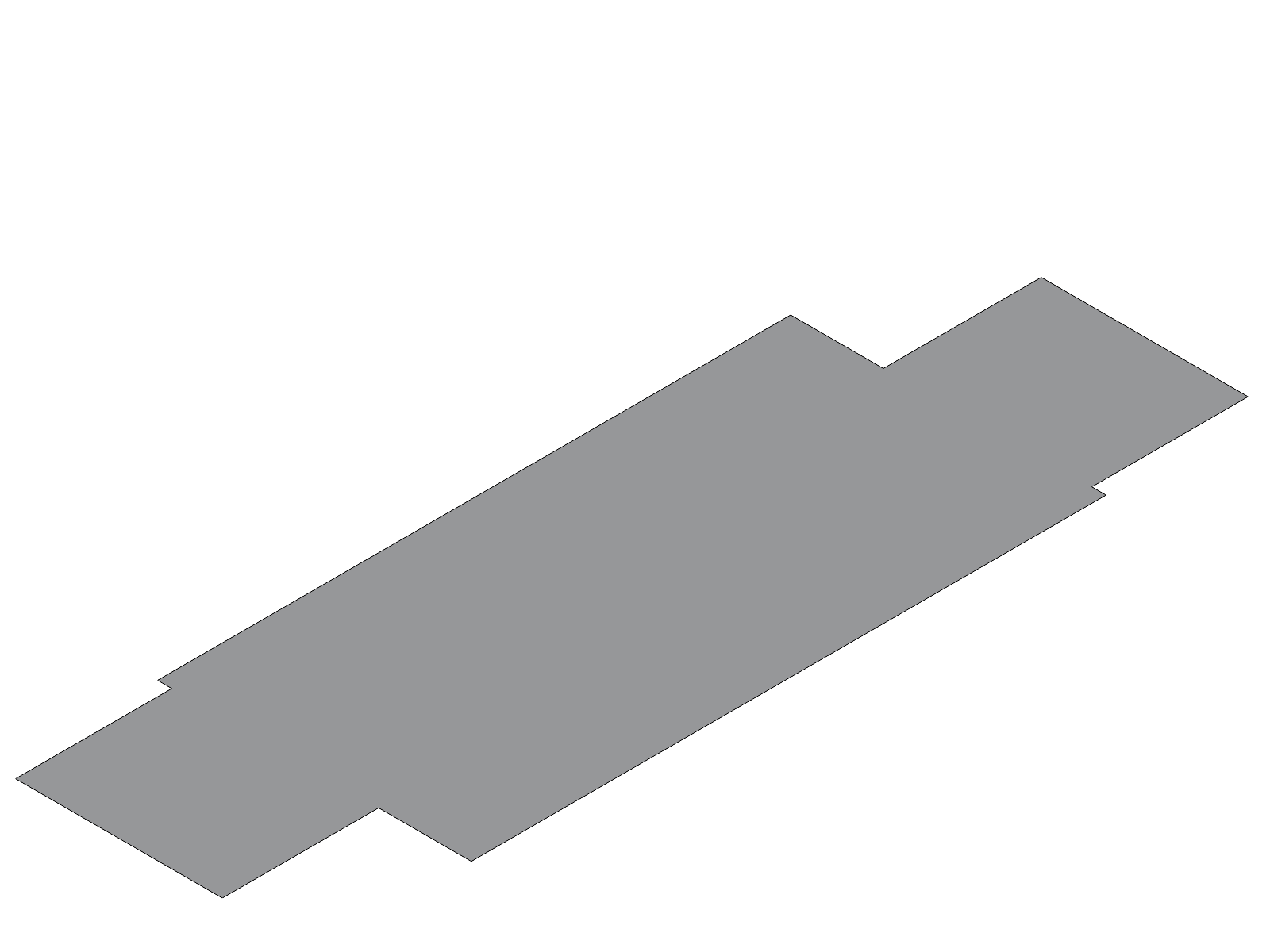

Foorprint

Building footprint

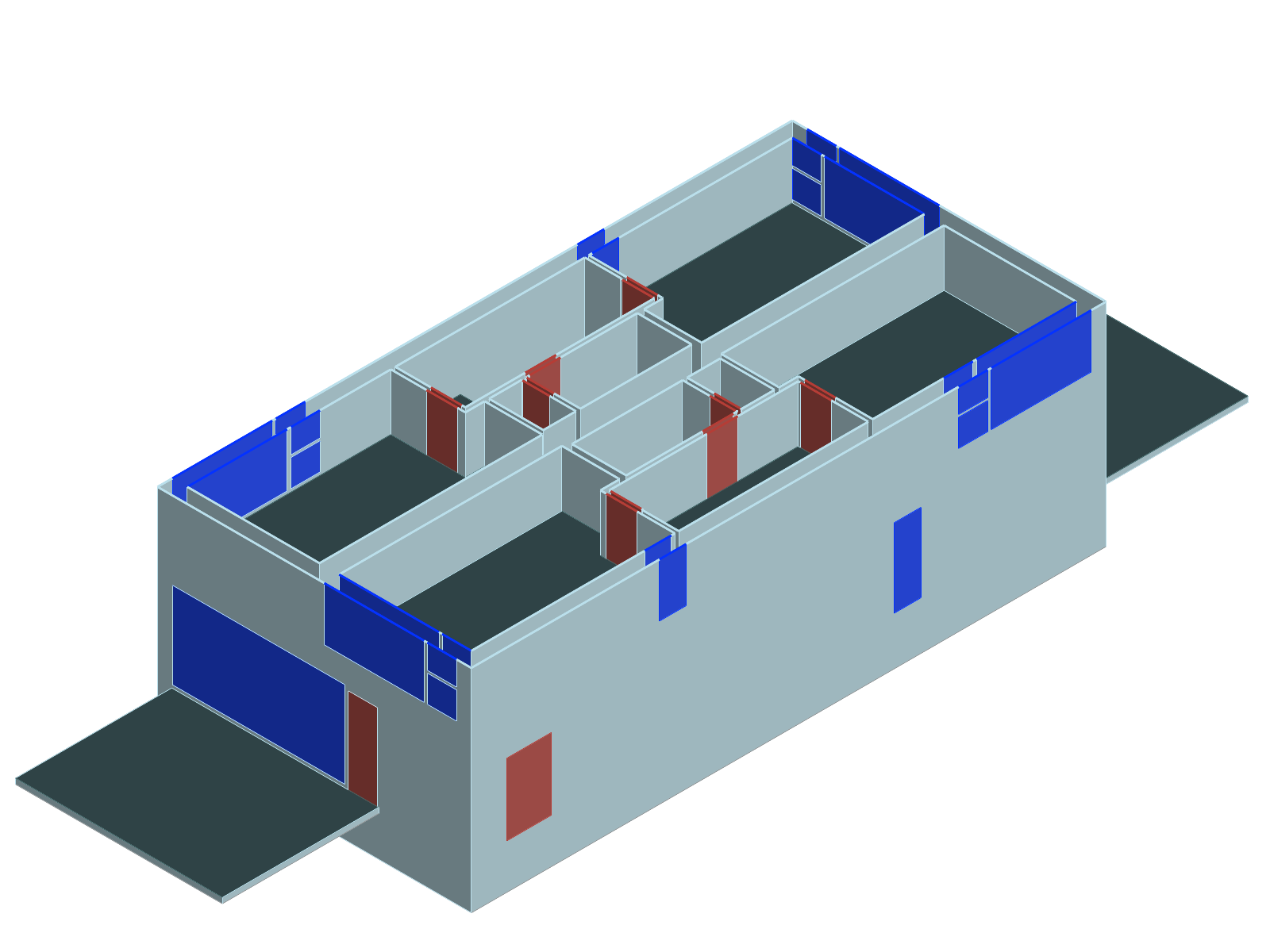

1st floor

First floor

2nd floor

Second floor

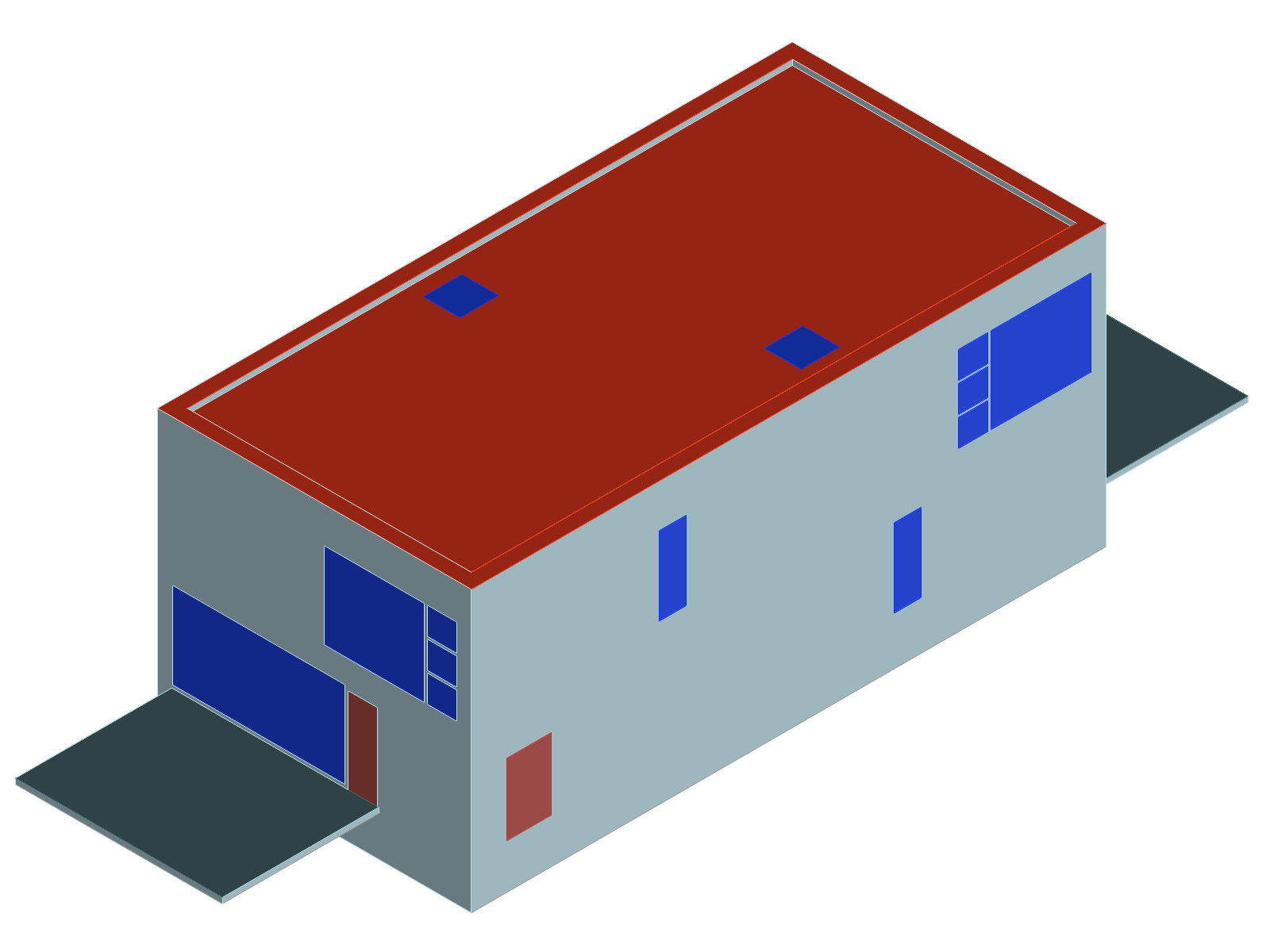

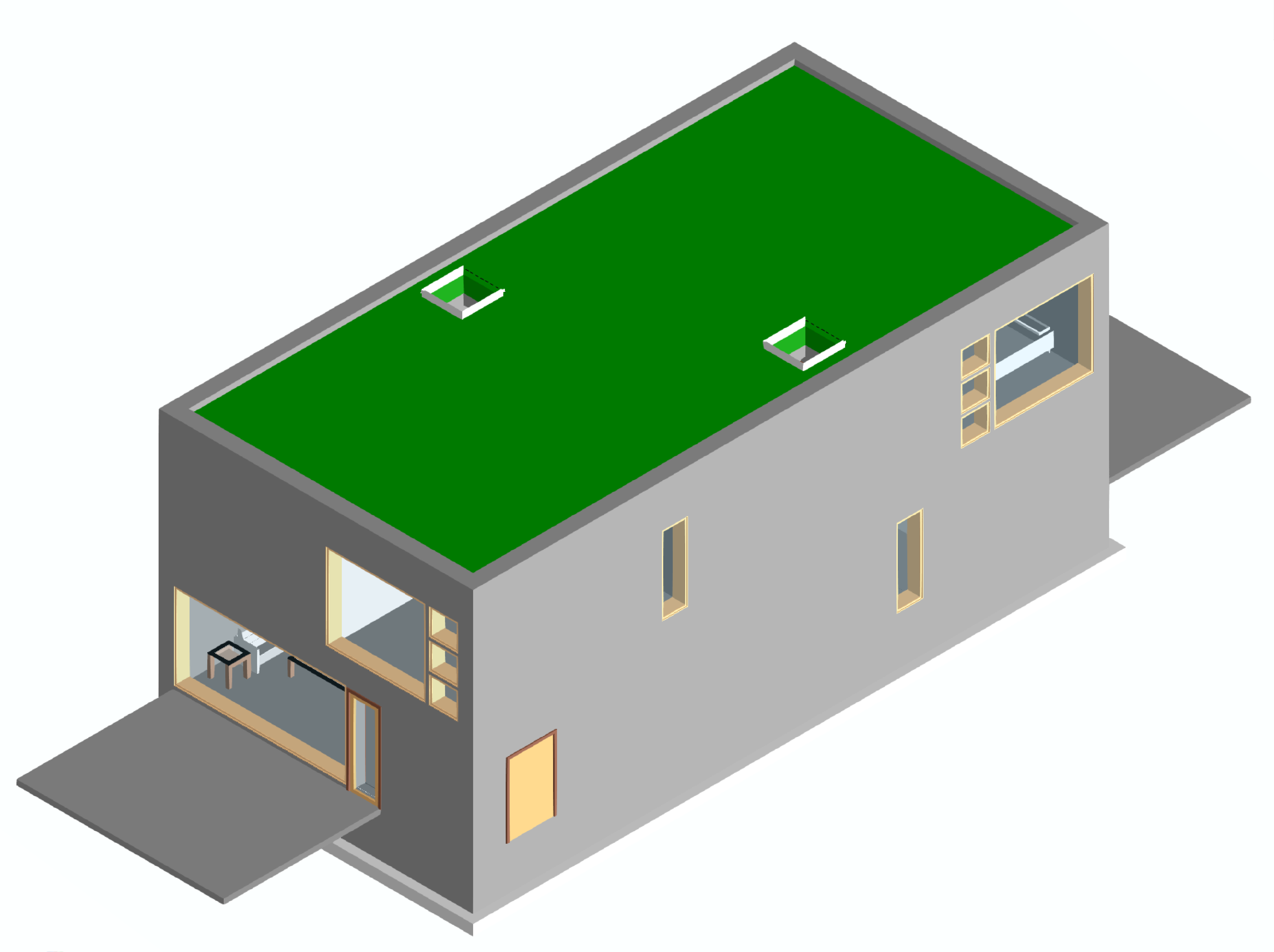

IFC model

IFC model

The aim of this assignment is to implement a BIM to Geo conversion for one building. In short, this will involve five steps:

1. converting the BIM model to OBJ using IfcConvert;
2. loading each object in the OBJ file(s) into a CGAL Nef polyhedron;
3. processing the Nef polyhedra into a single big Nef polyhedron representing the space filled by the building’s floors, walls, windows and so on;
4. extracting the geometries representing the building’s exterior surface and individual rooms;
5. writing the geometries to a CityJSON file with correct semantics.

Everything was implemented in C++ with the help of packages from the CGAL library and Niels Lohmann’s JSON for Modern C++ library.
